Challenge 5: "Code Heist"

In a high-tech underground bunker, you've stumbled upon a security keypad linked to a classified device. The rumors suggest that entering a hidden password will unlock a secret mode, but there’s a catch—the password isn’t documented anywhere.

However, your investigation reveals that the device’s firmware is stored in the internal Flash memory, and there’s a chance that the password is hardcoded within. If you can extract the firmware, you just might be able to pull off the ultimate code heist.

Your mission is clear:

1. Dump the firmware from the internal Flash memory using available debugging or ISP interfaces.
2. Analyze the firmware binary to locate and recover the hardcoded password.
3. Use the password on the keypad to unlock the device’s secret mode and retrieve the flag.

Setup

Notes

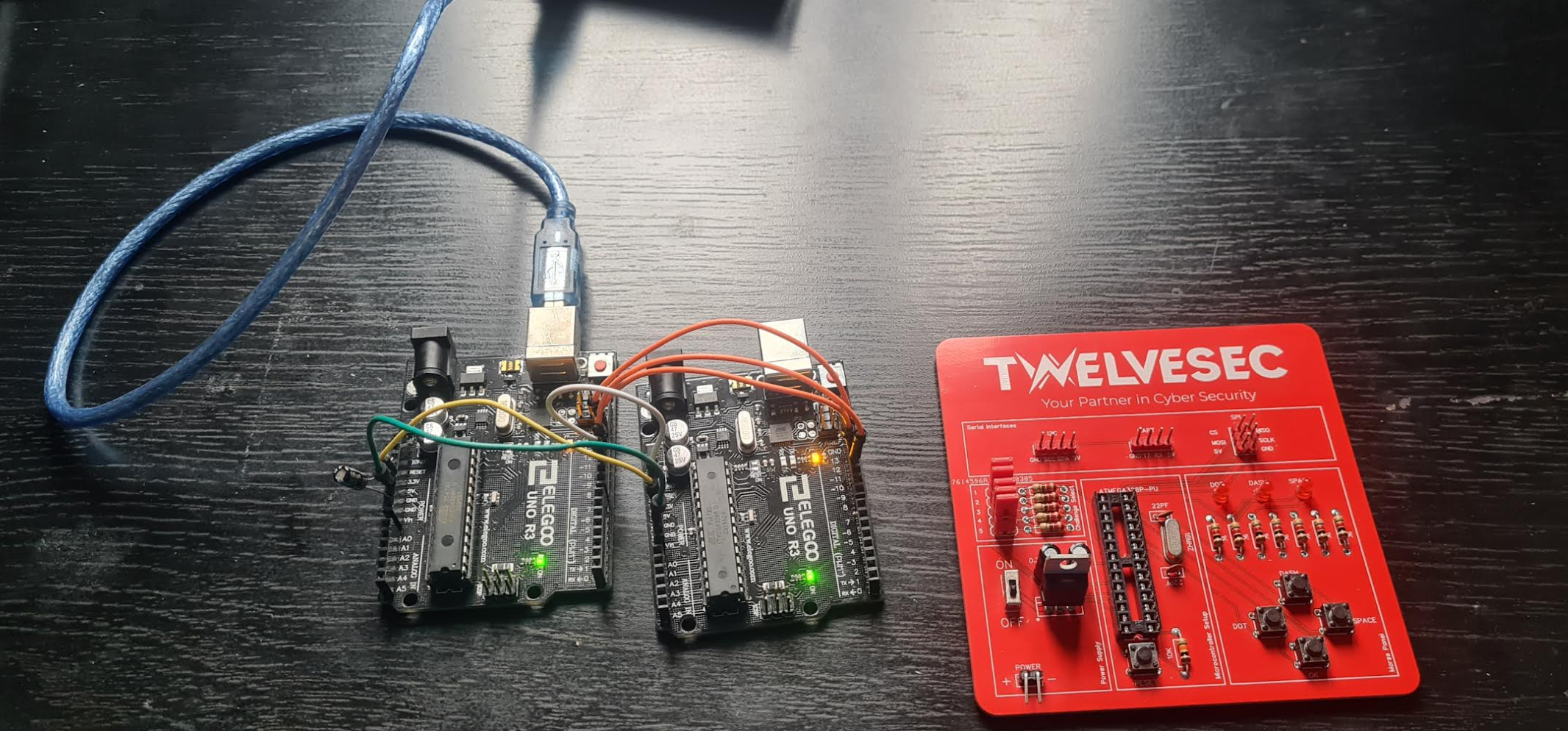

I used a seperate arduino with the "Arduino as ISP" sketch loaded and pulled the chip from the PwnPad which was then put in to a second spare arduino. The following was used to confirm that the atmega328p could be read:

$>  avrdude -v -c arduino -P /dev/ttyACM0 -b 19200 -p m328p -n

avrdude: Version 7.1
         Copyright the AVRDUDE authors;
         see https://github.com/avrdudes/avrdude/blob/main/AUTHORS

         System wide configuration file is /etc/avrdude.conf
         User configuration file is /root/.avrduderc
         User configuration file does not exist or is not a regular file, skipping

         Using Port                    : /dev/ttyACM0
         Using Programmer              : arduino
         Overriding Baud Rate          : 19200
         AVR Part                      : ATmega328P
         Chip Erase delay              : 9000 us
         PAGEL                         : PD7
         BS2                           : PC2
         RESET disposition             : possible i/o
         RETRY pulse                   : SCK
         Serial program mode           : yes
         Parallel program mode         : yes
         Timeout                       : 200
         StabDelay                     : 100
         CmdexeDelay                   : 25
         SyncLoops                     : 32
         PollIndex                     : 3
         PollValue                     : 0x53
         Memory Detail                 :

                                           Block Poll               Page                       Polled
           Memory Type Alias    Mode Delay Size  Indx Paged  Size   Size #Pages MinW  MaxW   ReadBack
           ----------- -------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- ---------
           eeprom                 65    20     4    0 no       1024    4      0  3600  3600 0xff 0xff
           flash                  65     6   128    0 yes     32768  128    256  4500  4500 0xff 0xff
           lfuse                   0     0     0    0 no          1    1      0  4500  4500 0x00 0x00
           hfuse                   0     0     0    0 no          1    1      0  4500  4500 0x00 0x00
           efuse                   0     0     0    0 no          1    1      0  4500  4500 0x00 0x00
           lock                    0     0     0    0 no          1    1      0  4500  4500 0x00 0x00
           signature               0     0     0    0 no          3    1      0     0     0 0x00 0x00
           calibration             0     0     0    0 no          1    1      0     0     0 0x00 0x00

         Programmer Type : Arduino
         Description     : Arduino for bootloader using STK500 v1 protocol
         Hardware Version: 2
         Firmware Version: 1.18
         Topcard         : Unknown

avrdude: AVR device initialized and ready to accept instructions
avrdude: device signature = 0x1e950f (probably m328p)

avrdude done.  Thank you.

Then pull the firmware:

$> avrdude -c arduino -P /dev/ttyACM0 -b 19200 -p m328p -U flash:r:flash_dump.bin:r

avrdude: AVR device initialized and ready to accept instructions
avrdude: device signature = 0x1e950f (probably m328p)
avrdude: reading flash memory ...

Reading | ################################################## | 100% 20.92 s

avrdude: writing output file flash_dump.bin

avrdude done.  Thank you.

Instead of loading the firmware in ghidra or another reversing tool I simply ran strings against it to find some low hanging fruit:

$> strings flash_dump.bin
        h>s@
/_?O/s3'
IUZO
E+F+G+i
/_?Oy
 h1P
!P1     A       Q       V
#+$+%+y
G.Q,a,q,
E.Q,a,q,
C.Q,C
d.q,N
O.Q,a,q,
&.1,s
G.Q,
n.q,N
/_?OY
(P1
.P1
'*0Q
?OOO_O
"P1     9
N__O$
N__O
"P1
Q,A,
APP@
SECRET MODE UNLOCKED: TS{F1rmw@re_S3cret}
- .-- ...-- .-.. ...- . ..... ...-- -.-.
+=========== Welcome To The UART Challenge ===========+
|       You Successfully Identified The Baudrate      |
|            You Can Now Control The LEDS             |
|                 TS{U@rt_15_@w3s0m3}                 |
+=====================================================+
SELECT LED (1/2/3) >
Error Wrong Id !
SELECT STATUS (0/1) >
Something Went Wrong!
TS{N0w_Y0u_@r3_@n_el173_H@(k3r}
TS{(h@||eng3_07P_i5_
TS{1_N33D_/\/\y_8u66y}
I will never tell you my secret !
TS{Gl1th3s_@r3_Awe50m3_!}
---------------------
cnt:
Hahaha, I changed my trigger go and find it
TS{0h_n0_y0u_foun6_my_7r1gg3r}
You will never enter my vault!
TS{Y0u_3nter36_th3_v@ul7}
You are no good enough
TS{D@mn_y0u_@r3_g006}
Welcome to my Login Interface!
You managed to identify my UART baudrate, now please login.
[+] Please Provide Your Password:
Please Enter Your 8 Digit PIN:
TS{D0n7_M355_w17h_t1m3}
[-] Wrong PIN!
No Challenge Selected!
[-] Login FAILED
TS{L0gin_Succ355fu1_!}
d3@1bt7*0PqSxc9~^
25315294
355fu1_!}
[-] Login FAILED
- .-- ...-- .-.. ...- . ..... ...-- -.-.
d3@1bt7*0PqSxc9~^
25315294
Password:
Please Enter Your 8 Digit PIN:
TS{D0n7_M355_w17h_t1m3}
[-] Wrong PIN!
No Challenge Selected!
[-] Login FAILED
TS{L0gin_Succ355fu1_!}
- .-- ...-- .-.. ...- . ..... ...-- -.-.
d3@1bt7*0PqSxc9~^
25315294
$N__O

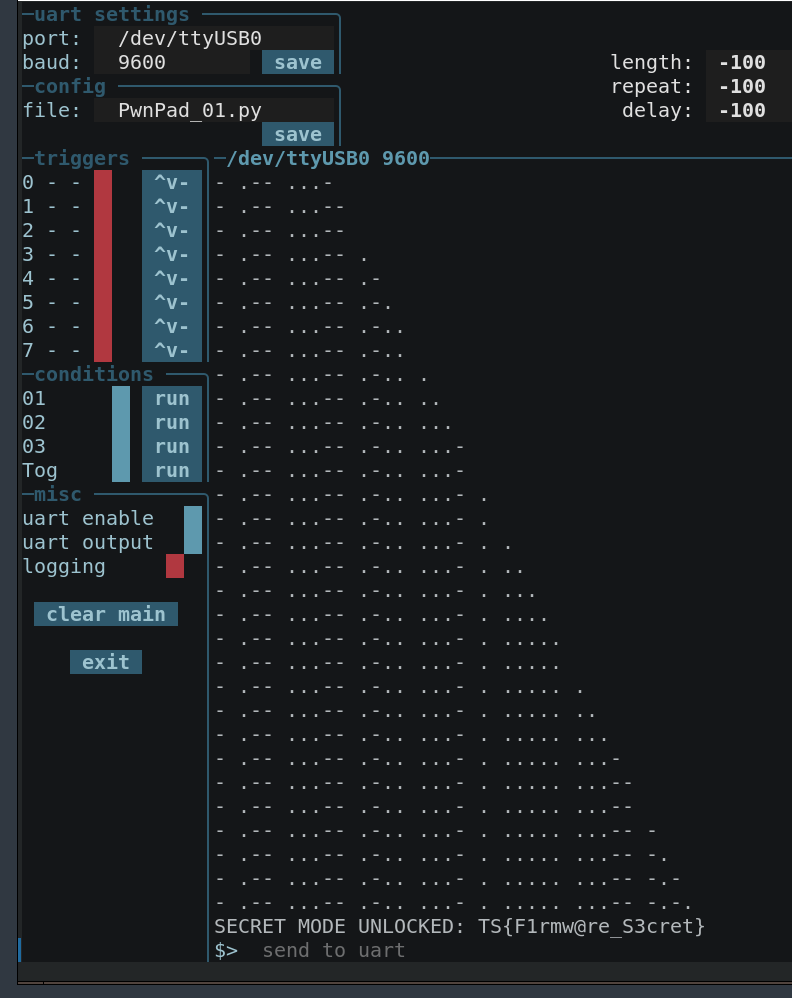

Wow loads of flags! we know that we need to find the morese code as that can be input via UART:

I wasnt convinced that was the intended way of doing it, so I also pulled the firmware using the headers on the board, that setup looked like:
