Browse code ٩( ‘ω’ )و initial release master
1 parent 48556ff commit 39c2a4713c5d8e3da7859765bca08c5ff18ccf30 root authored on 3 May

Showing 13 changed files

• +58-0
  ■■■■■
  ConfigBaudBrute.py
• +52-0
  ■■■■■
  ConfigChall02.py
• +48-0
  ■■■■■
  ConfigChall03.py
• +93-0
  ■■■■■
  ConfigChall04.py
• +108-0
  ■■■■■
  ConfigDemoAll.py
• ConfigGlitchBrute.py
• ConfigLoginBrute.py
• README.md
• functions.py
• glitch-o-bolt.py
• img/main_tagged.png
• scope.py
• style.tcss

Ignore Space Show notes View 58 ■■■■■ ConfigBaudBrute.py 0 → 100644

###### # LEAVE THESE IMPORTS! ###### import functions   ###### # config values (you can edit these to fit your environment and use case) ######   # Serial port settings SERIAL_PORT = "/dev/ttyUSB0" BAUD_RATE = 9600   ### # name, enabled, string to match in output, function to run # if string is blank ("") doesnt show toggle, just run button ### conditions = [ ["Next", False, "", "uart_up"], ["Prev", False, "", "uart_down"], ]   ###### # Custom functions for conditions to trigger ######   baud_rates = [300, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 128000, 256000]     def uart_up(): current_baud = functions.get_config_value("baud_rate") # Find the index of the current baud rate try: index = baud_rates.index(current_baud) except ValueError: # If current baud rate is not in the list, start from the lowest index = -1 # Get the next higher baud rate (wrapping around if at the end) new_index = (index + 1) % len(baud_rates) new_baud = baud_rates[new_index] functions.change_baudrate(new_baud) functions.add_text(f"\n[Rate Up] {new_baud}")   def uart_down(): current_baud = functions.get_config_value("baud_rate") # Find the index of the current baud rate try: index = baud_rates.index(current_baud) except ValueError: # If current baud rate is not in the list, start from the highest index = len(baud_rates) # Get the next lower baud rate (wrapping around if at the start) new_index = (index - 1) % len(baud_rates) new_baud = baud_rates[new_index] functions.change_baudrate(new_baud) functions.add_text(f"\n[Rate Down] {new_baud}")

Ignore Space Show notes View 52 ■■■■■ ConfigChall02.py 0 → 100644

###### # LEAVE THESE IMPORTS! ###### import functions import random from textual.widgets import Log   ###### # config values ######   SERIAL_PORT = '/dev/ttyUSB0' BAUD_RATE = 115200   LENGTH = 42 REPEAT = 1 DELAY = 0   ### # ^ = pullup, v = pulldown ### triggers = [ ['-', False], #0 ['-', False], #1 ['-', False], #2 ['-', False], #3 ['-', False], #4 ['-', False], #5 ['-', False], #6 ['-', False], #7 ]   ### # name, enabled, string to match in output, function to run # if string is blank ("") doesnt show toggle, just run button ### conditions = [ ["Flag", True, "ctf", "stop_glitching"], ["Chal2", True, "Hold one of", "start_chal_02"] # requires bolt output gpio pin 0 -> challenge board chall 2 button ]   ###### # Custom functions for conditions to trigger ######   def stop_glitching(): elapsed = functions.get_glitch_elapsed() functions.glitching_switch(False) functions.add_text(f"[auto] glitching stopped (elapsed: {elapsed})")   def start_chal_02(): functions.run_output_high(0, 30000000) ## can also run_output_low() if need too

Ignore Space Show notes View 48 ■■■■■ ConfigChall03.py 0 → 100644

###### # LEAVE THESE IMPORTS! ###### import functions import random from textual.widgets import Log   ###### # config values ######   SERIAL_PORT = '/dev/ttyUSB0' BAUD_RATE = 115200   LENGTH = 6000 REPEAT = 0 DELAY = 1098144   ### # ^ = pullup, v = pulldown ### triggers = [ ['-', False], #0 ['v', True], #1 ['-', False], #2 ['-', False], #3 ['-', False], #4 ['-', False], #5 ['-', False], #6 ['-', False], #7 ]   ### # name, enabled, string to match ### conditions = [ ['Flag', True, 'ctf', 'stop_glitching'], ]   ###### # Custom functions for conditions to trigger ######   def stop_glitching(): elapsed = functions.get_glitch_elapsed() functions.glitching_switch(False) functions.add_text(f"[auto] glitching stopped (elapsed: {elapsed})")

Ignore Space Show notes View 93 ■■■■■ ConfigChall04.py 0 → 100644

###### # LEAVE THESE IMPORTS! ###### import time import functions   from pyocd.core.helpers import ConnectHelper from pyocd.flash.file_programmer import FileProgrammer   ###### # config values ######   SERIAL_PORT = '/dev/ttyUSB0' BAUD_RATE = 115200   LENGTH = 50 REPEAT = 1 DELAY = 1   ### # name, enabled, string to match ### conditions = [ ['Start', False, '', 'start_chall_04'], ['Step1', False, '', 'step_1'], ['Step2', False, '', 'step_2'], ]   ###### # Custom functions for conditions to trigger ######   def start_chall_04(): functions.add_text(f"[Chall 4] enable uart switch then hold chall 4 button to load the challenge into memory.") functions.add_text(f"[Chall 4] once loaded hold 'boot 1' button and press 'reset' button to put in bootloader mode") functions.add_text(f"[Chall 4] then press 'Step1'")   def step_1(): functions.set_uart_switch(False)   functions.add_text(f"\n[Chall 4] uploading firmware to ram... please wait")   # Connect to the target board session = ConnectHelper.session_with_chosen_probe() session.open()   # Optionally halt the target target = session.target target.halt()   # Load binary file to specified address (e.g., 0x20000000) newFirmware = "/tmp/f103-analysis/h3/rootshell/shellcode-0xRoM.bin" programmer = FileProgrammer(session) programmer.program(newFirmware, base_address=0x20000000, file_format='bin')   # Optionally resume execution target.resume() # Clean up session.close()   with open(newFirmware, "rb") as f: original_data = f.read()   # Connect to the target session = ConnectHelper.session_with_chosen_probe() session.open()   target = session.target target.halt()   # Read back the memory from the target read_data = target.read_memory_block8(0x20000000, len(original_data))   # Compare if bytes(read_data) == original_data: functions.add_text(f"[+] Shellcode loaded successfully.") else: functions.add_text(f"[!] Mismatch detected. Shellcode may not have loaded correctly.")   session.close()   functions.change_baudrate(9600) functions.add_text(f"[Chall 4] hold buttons 'boot0' and 'boot1' and press the 'glitch' button") functions.add_text(f"[Chall 4] this single glitch will boot from SRAM") functions.add_text(f"[Chall 4] enable UART to access 'Low-level Shell' (might need to press reset)") functions.add_text(f"[Chall 4] then press 'Step2'") def step_2(): functions.send_uart_message("p") time.sleep(1) functions.change_baudrate(115200)

Ignore Space Show notes View 108 ■■■■■ ConfigDemoAll.py 0 → 100644

###### # LEAVE THESE IMPORTS! ###### import functions import random from textual.widgets import Log   ###### # config values (you can edit these to fit your environment and use case) ######   # Serial port settings SERIAL_PORT = "/dev/ttyUSB0" BAUD_RATE = 115200   LENGTH = 10 REPEAT = 5 DELAY = 100   ### # ^ = pullup, v = pulldown ### triggers = [ ["^", True], #0 ["-", False], #1 ["v", True], #2 ["-", False], #3 ["-", False], #4 ["-", False], #5 ["-", False], #6 ["-", False], #7 ]   ### # name, enabled, string to match in output, function to run # if string is blank ("") doesnt show toggle, just run button ### conditions = [ ["No01", False, "WillNeverMatch01", ""], ["No02", False, "WillNeverMatch02", ""], ["Heigh", False, "", "get_scroll_height"], ["AllTg", False, "", "toggle_all"], ["Trigr", False, "", "change_all_triggers"], ["Value", False, "", "random_values"], ['9600', False, '', 'change_baud_9600'], ['11520', False, '', 'change_baud_115200'], ]   ###### # Custom functions for conditions to trigger ######   def get_scroll_height(): if functions.app_instance: text_widget = functions.app_instance.query_one(".scrollable_log", Log) # Find the scrollable text area height = text_widget.scrollable_content_region.height # Get its height # Ensure the text is a string and append it to the Log widget random_number = random.randint(1, 100) new_text = f"[CONDITION] Scrollable height: {height} and Random Number: {random_number}" functions.add_text(new_text) functions.log_message(new_text) # Log the value else: functions.log_message("App instance not set!") # Debugging in case it's called too early   def toggle_all(): TriggersStatus = functions.get_trigger_value(0) if TriggersStatus is True: for i in range(8): functions.set_trigger_value(i, False) for i in range( len(conditions) ): functions.set_condition_value(i, False) else: for i in range(8): functions.set_trigger_value(i, True) for i in range( len(conditions) ): functions.set_condition_value(i, True)   def change_all_triggers(): for i in range(8): current_symbol = functions.get_trigger_string(i) cycle = ["^", "v", "-"] next_symbol = cycle[(cycle.index(current_symbol) + 1) % len(cycle)] functions.set_trigger_string(i, next_symbol)   def random_values(): functions.glitching_switch(False)   OrigLen = functions.get_config_value("length") OrigRep = functions.get_config_value("repeat") OrigDel = functions.get_config_value("delay")   NewLen = random.randint(1, 100) NewRep = random.randint(1, 100) NewDel = random.randint(1, 100)   functions.set_config_value("length", NewLen) functions.set_config_value("repeat", NewRep) functions.set_config_value("delay", NewDel)   functions.add_text(f"[UPDATED] length ({OrigLen} -> {NewLen}), repeat ({OrigRep} -> {NewRep}), delay ({OrigDel} -> {NewDel})")   def change_baud_9600(): functions.change_baudrate(9600) functions.set_uart_switch()   def change_baud_115200(): functions.change_baudrate(115200) functions.set_uart_switch(False)

Ignore Space Show notes View ConfigGlitchBrute.py 0 → 100644

Ignore Space Show notes View ConfigLoginBrute.py 0 → 100644

Ignore Space Show notes View README.md

Ignore Space Show notes View functions.py 0 → 100644

Ignore Space Show notes View glitch-o-bolt.py 0 → 100644

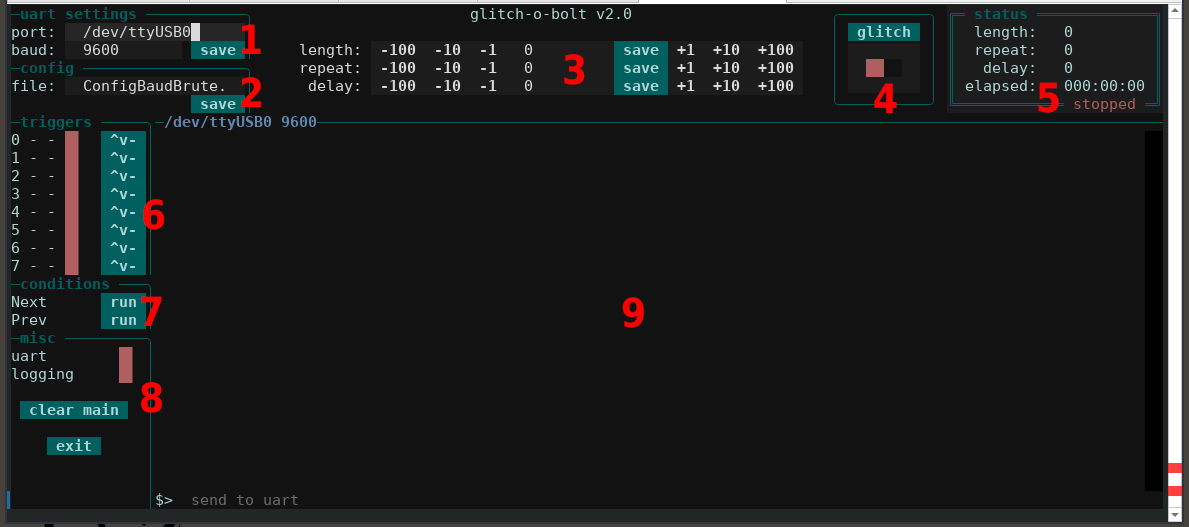

Ignore Space Show notes View img/main_tagged.png 0 → 100644

Ignore Space Show notes View scope.py 0 → 100644

Ignore Space Show notes View style.tcss 0 → 100644
